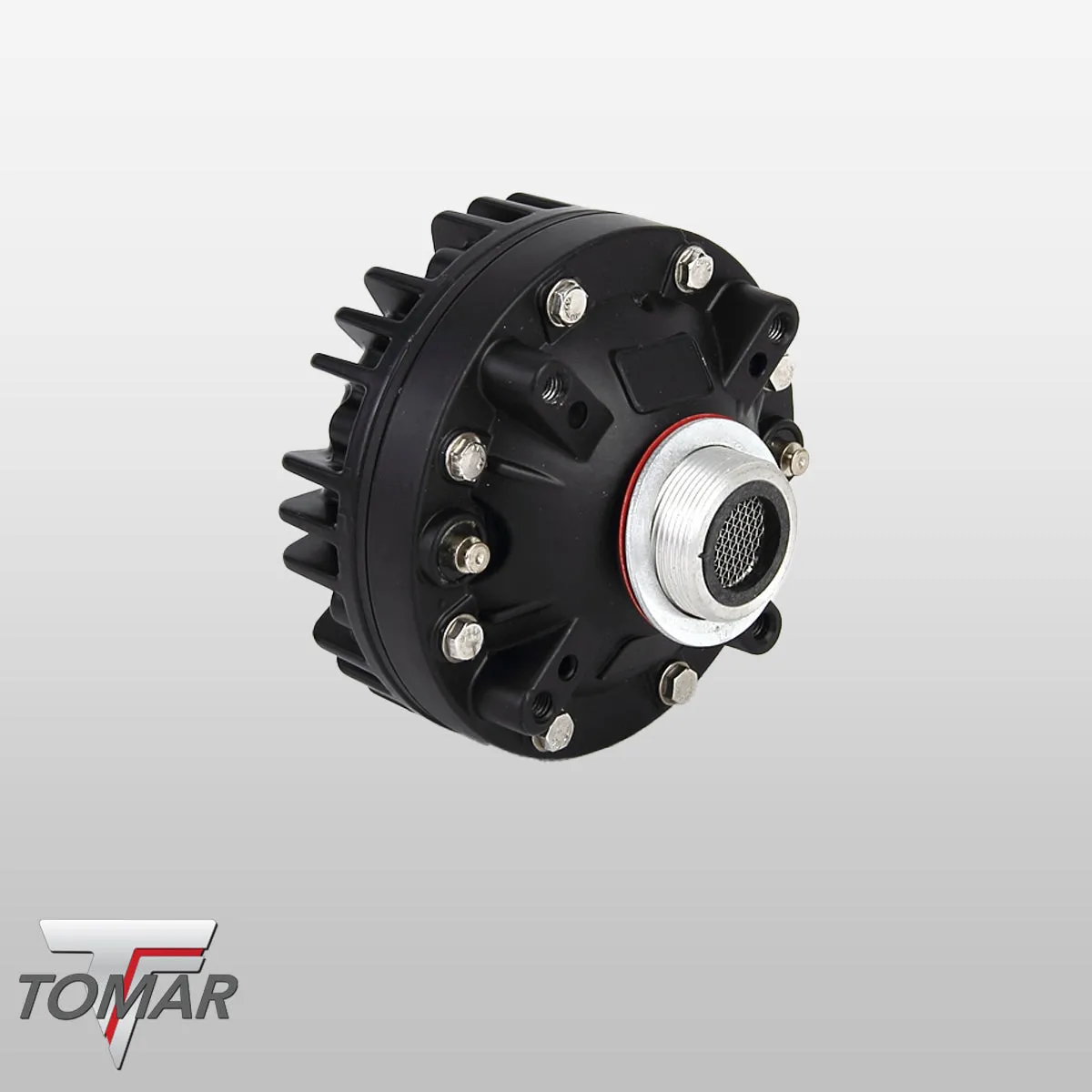

The DRV100 is constructed with a self-aligning sound chamber assembly containing 2.625” phenolic diaphragm. The speaker is driven by a copper-clad aluminum high temperature voice coil with a polyimide/glass composite former. The magnet structure is highly efficient and light weight. The finish is a light-texture black powder coat for durability and environmental stability. The magnet structure is first coated with a Mil-Spec “E-Coat” for additional protection.
Front mounting 1/4”-20 threaded and 5/16”-18 rear holes are provided to allow the driver to utilize industry standard mounting brackets and accessories. Electrical connection is made via standard slip-on terminals. The DRV100 is compatible with most 11 ohm/100W siren amplifiers.
SPECS
- Power Rating: 100 watt RMS
- Plane Wave Frequency Response: 250-3600Hz ± 5dB
- Sound Level (Peak dBA): 116dB average
- Nominal Impedance: 11 Ohms
- DCR: 6 Ohms
- Size and Weight: 4.6” dia. x 3” tall x 5.4 lbs (117mm x 76.2mm x 2.45kg)
